Jenny 600s

Modern task forces require a portable, reliable energy supply. Missions can take several days or weeks. In order to supply power reliably to soldiers' technical equipment during the entire deployment duration, soldiers up to now had to use numerous batteries and carry spares, resulting in a substantial weight burden.

Get in touch

View all Products

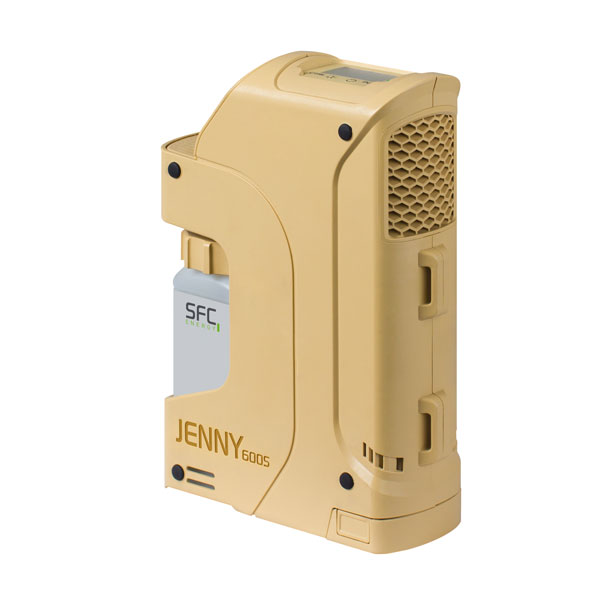

Modern task forces require a portable, reliable energy supply. Missions can take several days or weeks. In order to supply power reliably to soldiers' technical equipment during the entire deployment duration, soldiers up to now had to use numerous batteries and carry spares, resulting in a substantial weight burden. Using the JENNY 600S fuel cell significantly reduces the weight burden by reducing the number of spare batteries. For example, up to 80 % of battery weight burden can be eliminated based on the high energy density of the methanol fuel used and for a mission with a duration of 72 hours. JENNY 600S supplies power to electrical devices and/or charges batteries in the field with minimal user attention. It is simple to use and does not generate any kind of detectable signature. Therefore, the soldier can equip himself/herself with the minimum amount of batteries and instead carry additional food, water and ammunition. In combination with the SFC Power Manager 3G, a power distribution hub, several devices can be supplied with power very efficiently at the same time. JENNY 600S is already being used by NATO forces.

JENNY 600S supplies electrical devices directly

Quiet operation without detectable signatures

Space saving with significant weight reduction

Easy to operate without extensive training

Operation is not weather-dependent

JENNY 600S charges different battery types fully automatically

In combination with the SFC Power Manager 3G, charging several batteries simultaneous is possible

JENNY 600S is ruggedised for military use: specified, tested and deployed in a field environment

JENNY 600S as well as the fuel cartridges have a NATO supply number

The fuel cartridges are approved for air transport in accordance with UN3473

Charging performance per day* 600 Wh

Nominal power 25 W

Output voltage 10 – 30 V DC1

Weight 1.7 kg

Dimensions L x W x H 184 x 74 x 252 mm

Operating temperature2 -32 °C to +55 °C

Deployment elevation up to 4,000 m

Noise emission < 37 dB(A) at 1 m

Military ruggedisation & electromagnetic compatibility MIL-STD and VG standard

1 Voltage is self-regulating when used with SMBus batteries and the SFC Power Manager 3G
2 In the temperature range of +50 °C to +55 °C, operation is possible only for a limited time. For hot climates, the M.35 Desert and M2.5 Desert fuel cartridges are available.
