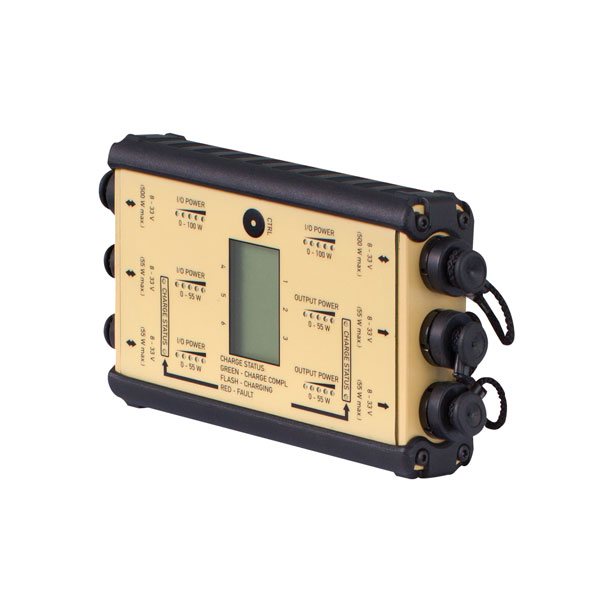

Nowadays, the modern soldier has to carry numerous electrical devices. All these devices have different mains and charging units to guarantee the power supply. The SFC Power Manager 3G enables the soldier to use all energy sources available in the field such as hybrid batteries, solar panels, vehicle power and, of course, fuel cells to power devices or charge batteries.
Get in touchNowadays, the modern soldier has to carry numerous electrical devices. All these devices have different mains and charging units to guarantee the power supply. The SFC Power Manager 3G enables the soldier to use all energy sources available in the field such as hybrid batteries, solar panels, vehicle power and, of course, fuel cells to power devices or charge batteries. The SFC Power Manager 3G automatically detects the connected devices, thanks to intelligent cable coding, and adjusts the output voltage correspondingly. This results in very low power loss and super-efficient power distribution which is essential for operations in the field. Carrying separate chargers is therefore redundant and resulting in additional storage space. SFC Power Manager 3Gs of different generations are already being used by the US Air Force, the German Bundeswehr and many other defence organisations.
Portable, intelligent power distribution
Versatile, practical battery charger
Increase in sustainability of operations
Reduces weight and pack size
Portable: In the energy network, the SFC Power Manager 3G can charge several batteries simultaneously
In the vehicle: The SFC Power Manager can intelligently distribute the vehicle's energy to different loads
For stationary systems: In combination with an EMILYCube 2500 fuel cell, the SFC Power Manager 3G can ensure the energy supply for a computer subnet or a ground radar, for example
Expandable with all military SFC fuel cells - they can serve as a power source for the SFC Power Manager 3G.
New loads can be added later using a specific, coded cable
Tested since 2010 in the field: The German Bundeswehr equips its soldiers with the portable SFC energy network
Weight 520 g
Dimensions L x W x H 162 x 95 x 36 mm
Display LCD full text display
Connections 2 power inputs / outputs (500 W) 2 bi-directional battery charging ports (65 W) 2 battery and device outputs (65 W) Voltage range 8 - 33 V DC
Current carrying capacity 5 A / 12 A / 15 A (short-term)
Voltage range 8 - 33 V DC
Power range max. 500 W
Cable identification ID chip
Protection against overvoltage, overload, short circuit, false polarity, overheating, Water-proof IP65
Operating temperature -32 °C to +55 °C
Military ruggedisation & electromagnetic compatibility MIL-STD and VG standard
